2m 100kg payload electric motor telescoping lift table

FOB Reference Price:Get Latest Price
US$1,300.00 - US$1,350.00 / Set | 1 Set/Sets (Min. Order)
Max. Lifting Height:
2m
Rated Loading Capacity:
100kg
Model Number:
TAL-2E-100
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
After Warranty Service:
Online support
Local Service Location:
None
Showroom Location:
None
Place of Origin:
Tianjin, China
Brand Name:
TALENTS
Warranty:
1 YEAR
After-sales Service Provided:
Online support
Extended height:
2m/6.56ft
Closed height:
1.2m/3.94ft
Main pole's material:
Aluminum Alloy
Lifting method:
motorized lifting
Max payload:
100kgs/220.46lbs
Max windload:
120km/h
Surface color:
army green or customized color
OEM/ODM Service:
YES
Working temperature:
-55--+70C
Voltage:
220v/380v
Lift Mechanism:
Telescoping Lift
Lift Drive / Actuation:
Electric Motor
Power:
300W
Min. Lifting Height:
1.2m
Table Size:
78.5cm2
Overall Dimensions:
1.2m*0.13m
Weight:
40kg
Certification:
CE
Product Certification certification
CE Certified.
Supply Ability
Supply Ability:
2000 Set/Sets per Month 2m 100kg payload electric motor telescoping lift table
Packaging & Delivery
Packaging Details
One unit of 足球投注网 with tripod (main pole and all accessories ) to be wrapped with Poly tapes
Port
Xingang, China
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Video Description
Product Description

Specification

2m 100kg payload electric motor telescoping lift table
Model No.
TAL-2E-100
Main pole material
aluminum alloy
Surface treatment
Hard anodizing
Surface color
army green
Extended height
2.0m
Retracted height
1.0m
Max head load
100kg
Sections Number
3 sections
Max wind load
120km/h ( with guy wire fixed)
accessories
motor/invertor/tripod/guy wire/ steel stakes
Certifications

Common application

Telecommunications, Surveillance, Broadcasting, Disaster Recovery, Site Surveys, Energy Production,
Site Security...and so on.

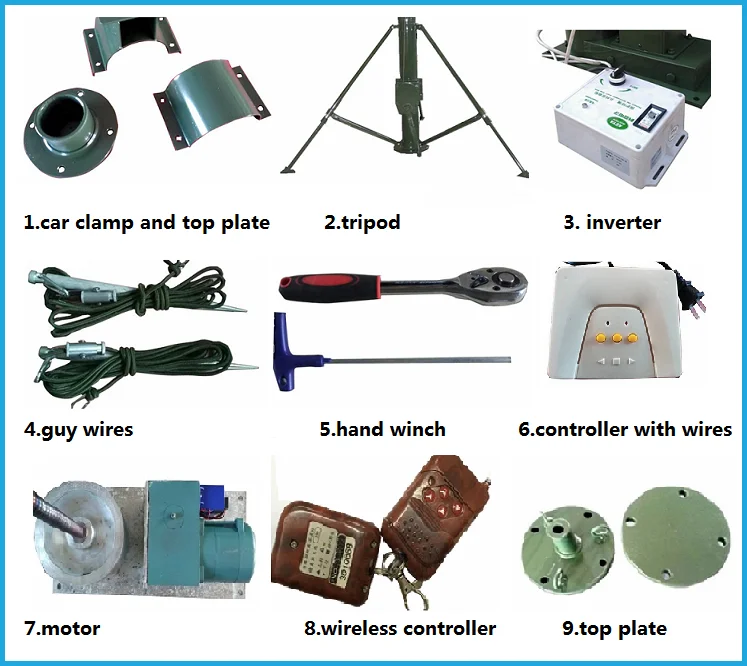

Accessories

2m 100kg payload electric motor telescoping lift table

Operation steps

1. Select an area free of power lines or other overhead obstructions. Mast location should be no closer than a horizontal distance equal to the extended height of the mast away from any overhead power lines. The mast should be located on level terrain.
2. To mount mast on vehicle, just fix the mast with car clamps, to mount on ground, fix the mast base plate and tripod (if needed) with stainless steel stakes to make the mast stable.
3. Mount lifting handle bar to raise up manual mast, for pneumatic or motorized mast, connect air pump or motor equipped with the power require, for motorized one, hand crank also work. 4. All 足球投注网 kits include guy wires, connection hardware, ground anchor, the mast above 10m or less than 10m (including 10m) carrying more than 5kg must be fitted with pulling cords. The distance between ground anchor and the bottom center of the mast is greater than 2/3 of the height of the mast. For manual and motorized mast, hitting one ground anchor per 120 degrees, for pneumatic mast in 90 degree .
Packing & Delivery
Package information
package way
one set mast with accessories wrapped by polyester tapes, then packed into a plywood case
Other Specification
Motorized 足球投注网
MODEL No.
Extended
Height
(m)
Retracted
Height
(m)
Bottom
OD
(mm)
TOP
OD
(mm)
Section
NO.
Head-load
(KG)
TAL-2M-30
2
1.0
60
40
3
30
TAL-2M-30
2
0.75
90
40
6
20
TAL-2M-100
2
1..2
130
105
2
100
TAL-3M-250
3
1.75
130
90
3
250
TAL-4M-250
4
1.8
130
90
3
250
TAL-4M-10
4
1.55
80
40
4
10
TAL-4M-50
4
1.2
130
60
6
50
TAL-5M-150
5
1.4
160
60
6
150
TAL-5M-600
5
1.6
150
60
5
600
TAL-6M-10
6
1.7
90
40
6
10
TAL-6M-50
6
1.7
105
50
6
50
TAL-8M-30
8
2.2
105
40
6
30
TAL-10M-30
10
2.45
105
40
7
30
TAL-12M-200
12
2.45
160
70
7
200
TAL-12M-35
12
2.3
130
40
7
35
TAL-12M-100
12
2.7
130
50
7
100
TAL-12M-20
12
2.4
150
40
7
20
TAL-15M-20
15
2.8
105
40
7
20
TAL-15M-30
15
2.8
130
50
7
30
TAL-15M-300
15
2.7
155
60
7
300
TAL-20M-200
20
3.7
230
70
7
200
TAL-25M-80
25
3.4
230
60
10
80
TAL-25M-60
25
3.4
210
60
10
60
TAL-28M-15
28.5
3.7
130
30
10
15
TAL-35M-10
35
3.9
180
30
11
10

NOTE:

above specification does not include all we can do.

Our Service

OEM/ODM service available for the buyers
Professional team for consulation, solution and designing
Complete quality control system before delivery
Multi-way fast delivery channel at buyer's option

One year free after-sale warranty after delivery

Our Company


       Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated 足球投注网s and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.
      Talents was founded in 1995, since then we focus on offering customers high quality, durable, applied and economic masts. 23 years of our specialized knowledge and experience of the 足球投注网 technology allows us to effectively supply the solutions and designing for the OEM/ODM and after-sale services of the mast to meet our customer's needs, whilst ensuring that we are achieving maximum efficiency and output at the same time. We are serving our long-term customers from the five Continents and the four Oceans
       Our masts are CE certified, we have been a golden supplier on Alibaba since 2007, we are keeping with our customers
an one for one timely information feedback, we have organized an expert team for quality control and inspection system,
we have built up Multi-way fast delivery channels and we are supplying one year free after-sale warranty to the buyer. We
think outside the box and are continually developing new products to meet customer requirements, what you are asking
for is our motive power of task, we wish one of our products will well-meet what you demand.
